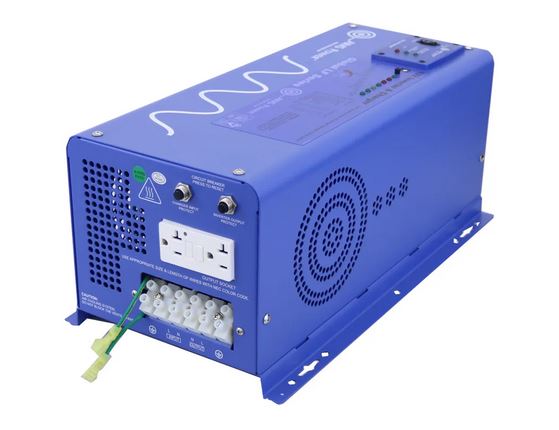

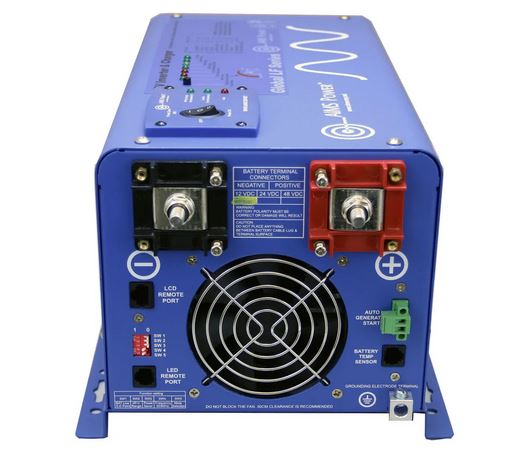

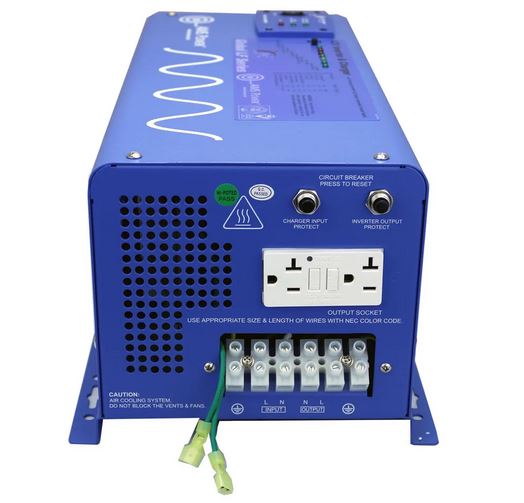

2000-watt Pure Sine Inverter w/ Battery Charger 12V

Low stock! Only 1 left
Regular price $1,056.00
Sale price $1,056.00 Regular price
Shipping calculated at checkout.

  • Fully secure checkout
  • Trusted by thousands
  • Decades of Experience



From the manufacturer's website:

This 2000 watt low frequency AIMS Power inverter charger is three products in one.

  1. The inverter transforms DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to power tools and appliances of all varieties.
  2. A built-in 30 amp transfer switch, which will automatically detect when you’re switching from shore power to battery-bank power.
  3. It also has a built-in 70 amp battery charger which uses AC power, like from the grid or from a fuel-powered generator, that can be used to recharge a battery bank as well. The battery-type selector on the top of the unit allows the ability to adjust the voltage provided to the bank.

Combine this inverter charger with a deep-cycle battery bank for off-grid, mobile and emergency backup power.

Features:

  • 2000 watt low frequency inverter
  • 6000 watt surge for 20 seconds 300% surge capability
  • Battery Priority Selector
  • AC direct connect terminal Block
  • Marine coated and protected
  • Multi stage smart charger 70 Amp for gel, AGM, lead and lithium LiFePO4
  • GFCI - 15 amps
  • Remote panel available
  • Auto frequency
  • 10msec typical transfer time
  • Selectable 25W power save mode (hibernation)
  • 7 battery type settings for charger
  • Automatic transfer switch

Specifications

Configuration

AIMS 2000 Watt Power Inverter

Dimensions

16.48 in x 8.74 in x 7.1 in

Weight

41 lb

Color

  • Blue

Charger Specs

  • Output Voltage: Depends on battery Type
  • Charger Rate: 70A
  • Over Charge Protection Shutdown 15.7V
  • Selectable Charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four Stage Smart Charger

Input Specs

  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc-11.0Vdc
  • Low Battery Trip: 10.0Vdc-10.5Vdc
  • High Voltage Alarm: 16.0Vdc
  • Low battery Voltage Restart: 13.3Vdc
  • Idle Consumption: 28 Watts
  • Charger Breaker - 20 amps
  • Power Saver Mode Idle Consumption: 12.7 watts



Output Specs

  • Continuous Output Power: 2000 Watts
  • Surge Rating: 6000 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Bypass terminal breaker - 30 amps
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC
  • Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)



WHAT'S IN THE BOX

  • (1) 2000-Watt Inverter
